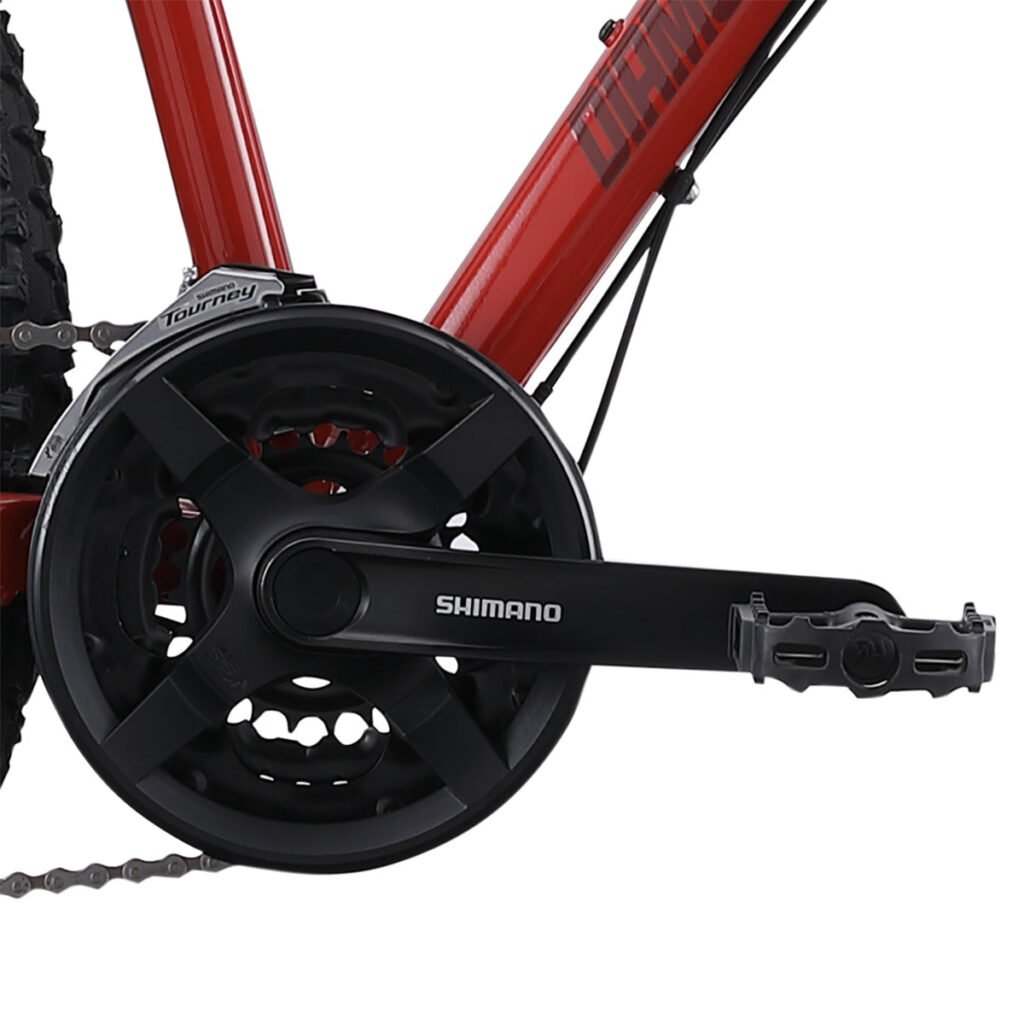

Crankset
The Shimano Tourney TY301 crankset features a 42/34/24T chainring setup, offering smooth shifting and reliable performance. It provides durable construction and efficient power transfer on a variety of terrains.
DIAMONDBACK

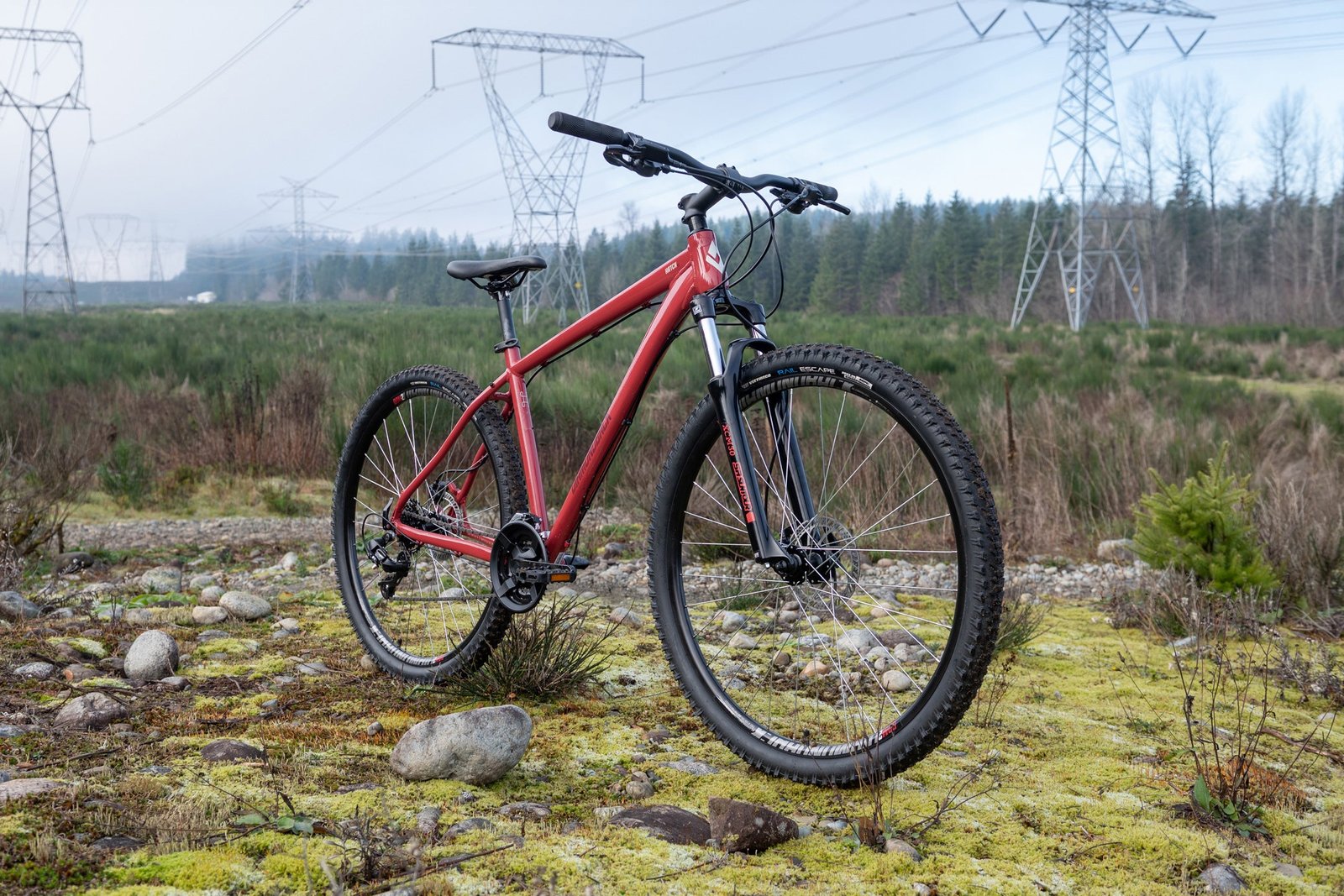

Hatch 3
$775.00
Description

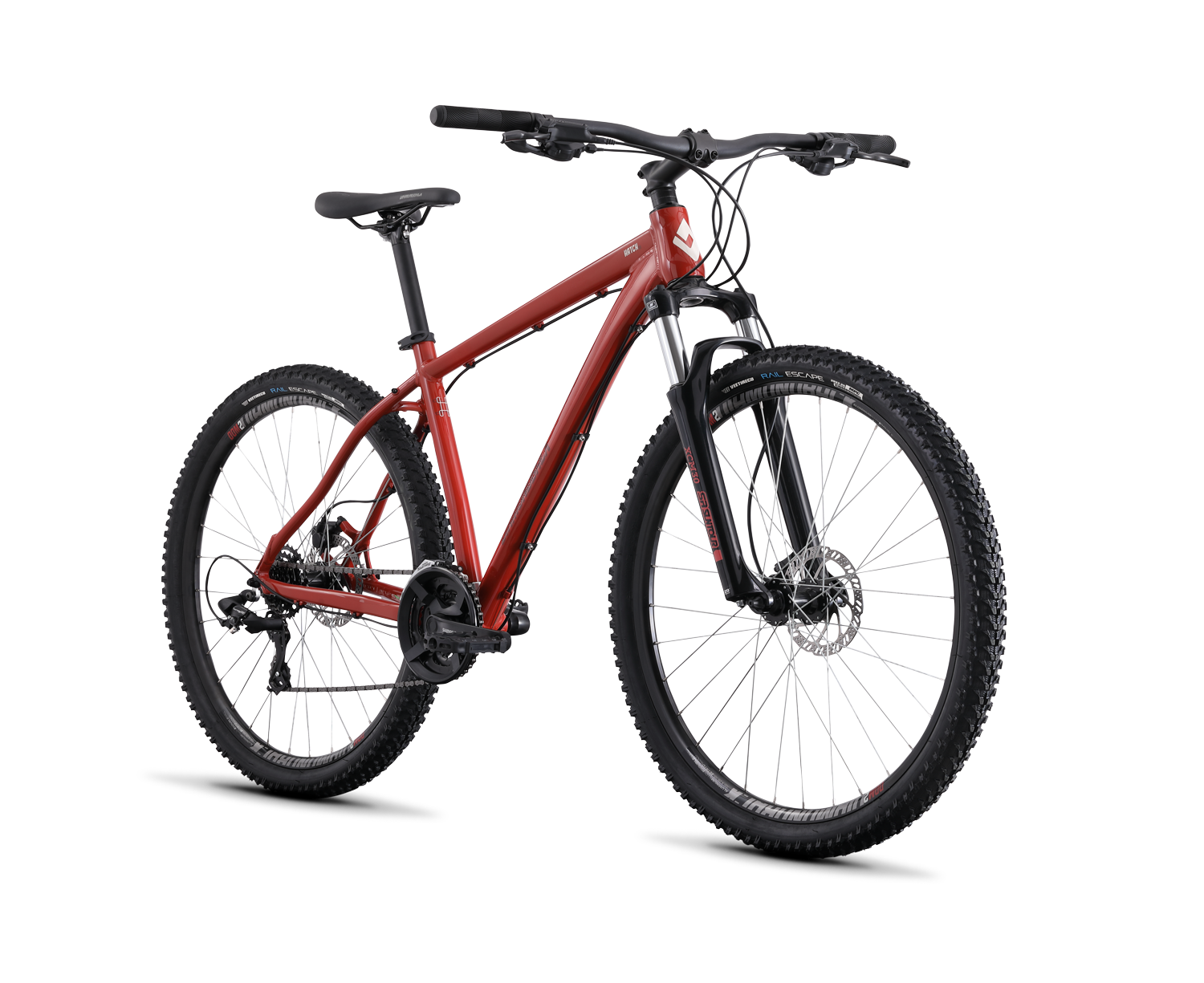

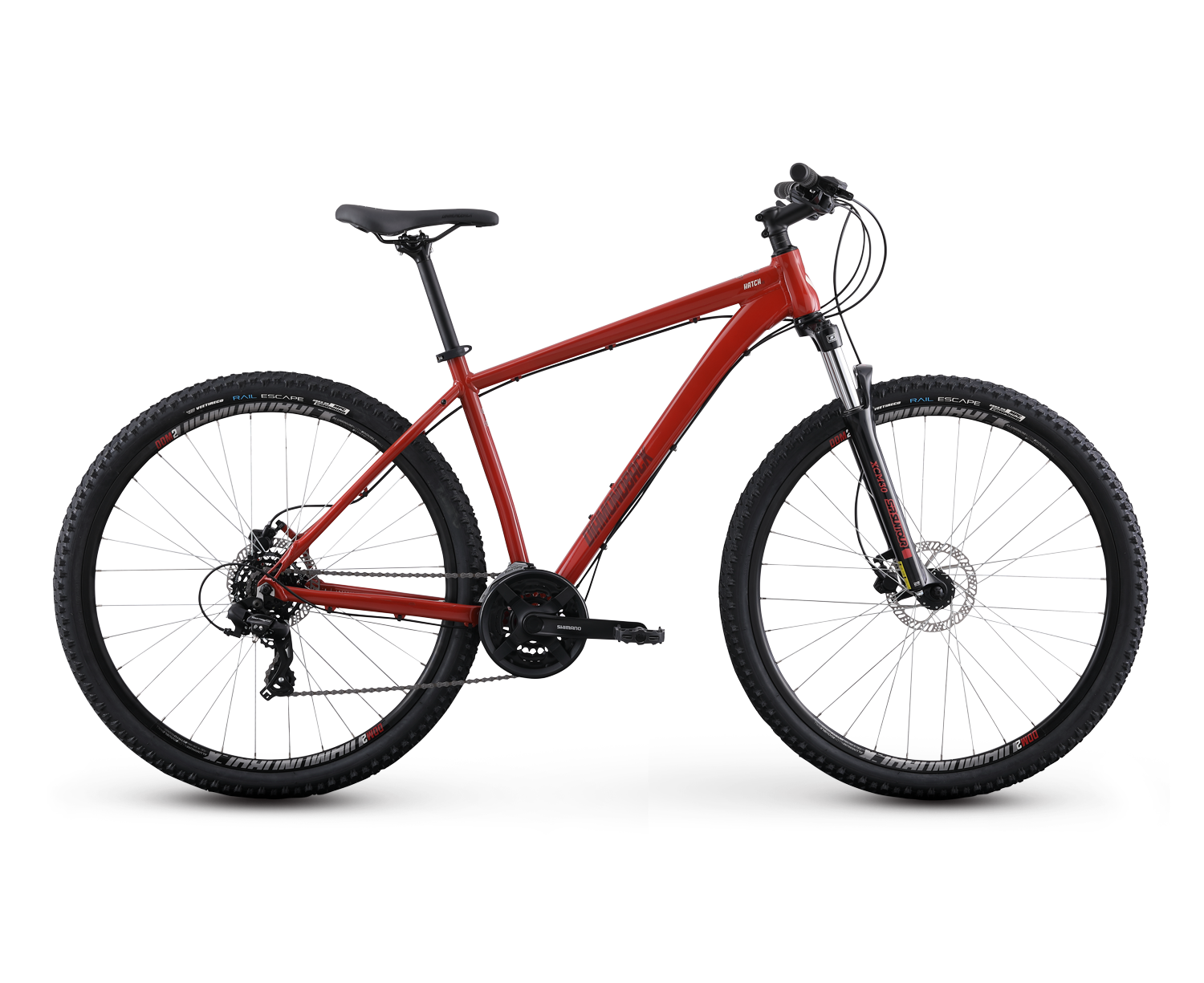

At home on dirt, gravel, and pavement, the Hatch 3 keeps the adventure going when it’s time to explore the path less travelled. To give you the ideal balance of stability and easy handling, the Hatch features Progressive Wheel Sizing, using the wheel size that best matches the rider size. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you’ll always find a comfortable pedaling pace, and Tektro hydraulic disc brakes provide great stopping power. Built-in eyelets allow you to mount a rear rack and fenders so you can also use the Hatch as a commuter bike or city bike.
Shipping & Returns
Shipping rates and delivery windows are confirmed at checkout. Returns are accepted according to the RIDECO returns policy.

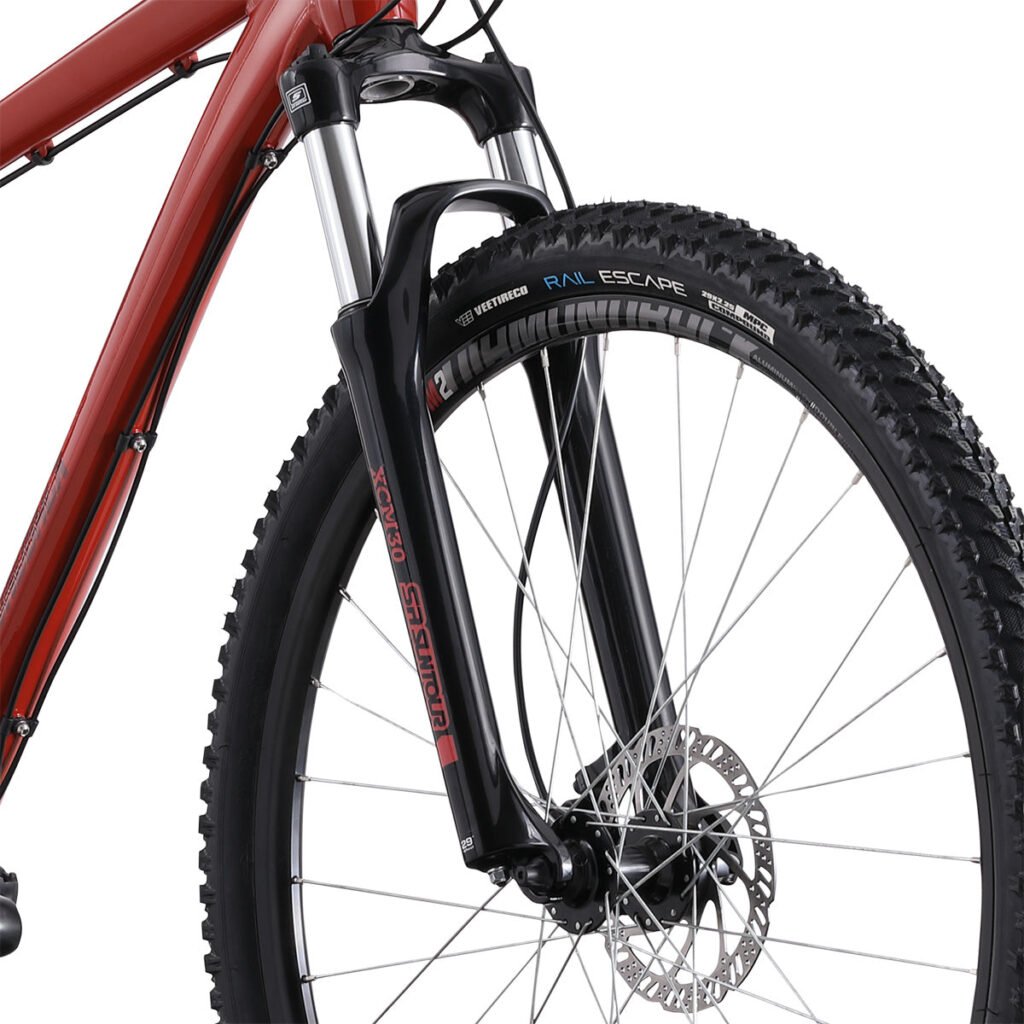

Fork
The SR Suntour XCM-DS fork offers 100mm of travel with a pre-load adjuster for customizable suspension. Designed for IS post mount discs, it delivers smooth performance and reliability for entry-level mountain biking.

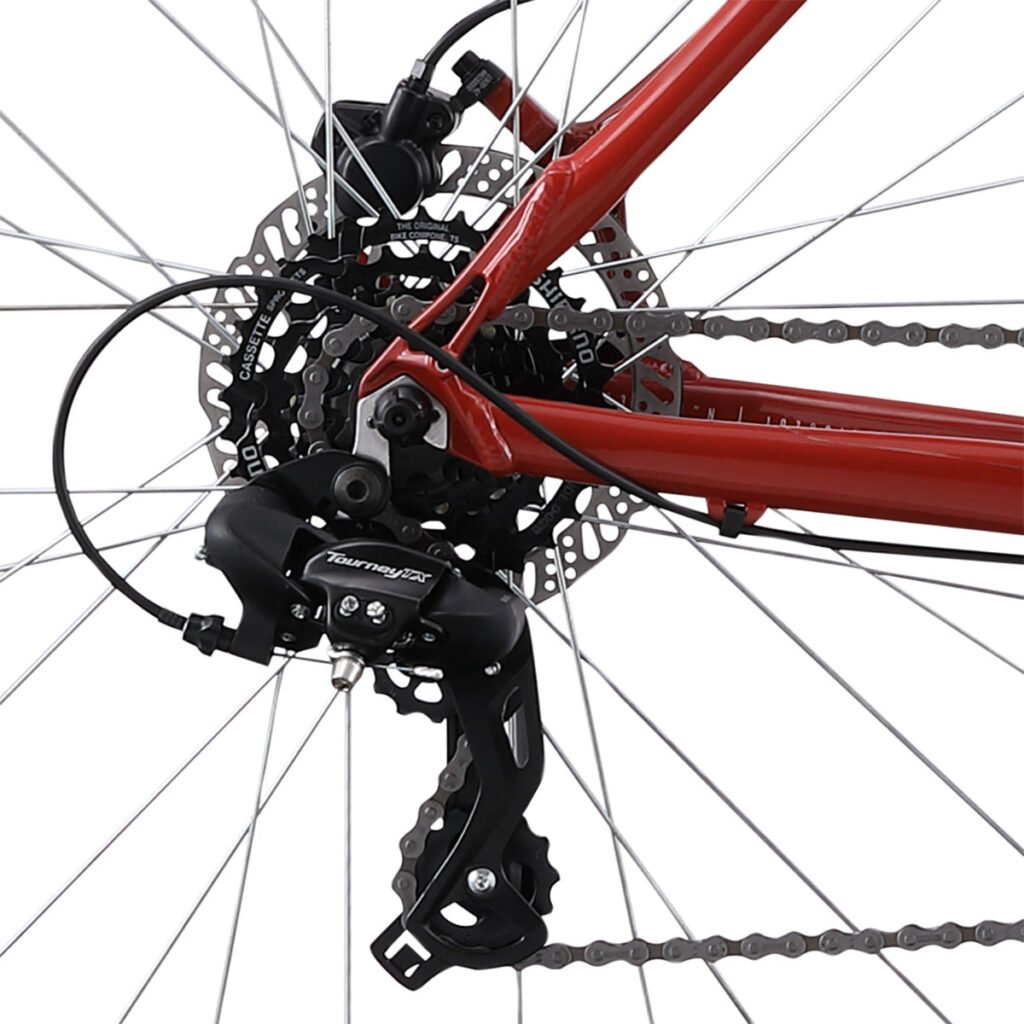

Rear Derailleur
The Shimano Tourney TX800 features a 7-speed drivetrain with smooth, reliable shifting. Itt offers durability and efficient performance, making it perfect for casual riders on various terrains and conditions.
Specifications
FRAME
Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
COG SET
Shimano GH20 Cassette, 7speed, 12-32 Tooth
PEDALS
Wellgo Plastic Body
REAR SHOCK
N/A
CHAIN
KMC Z7

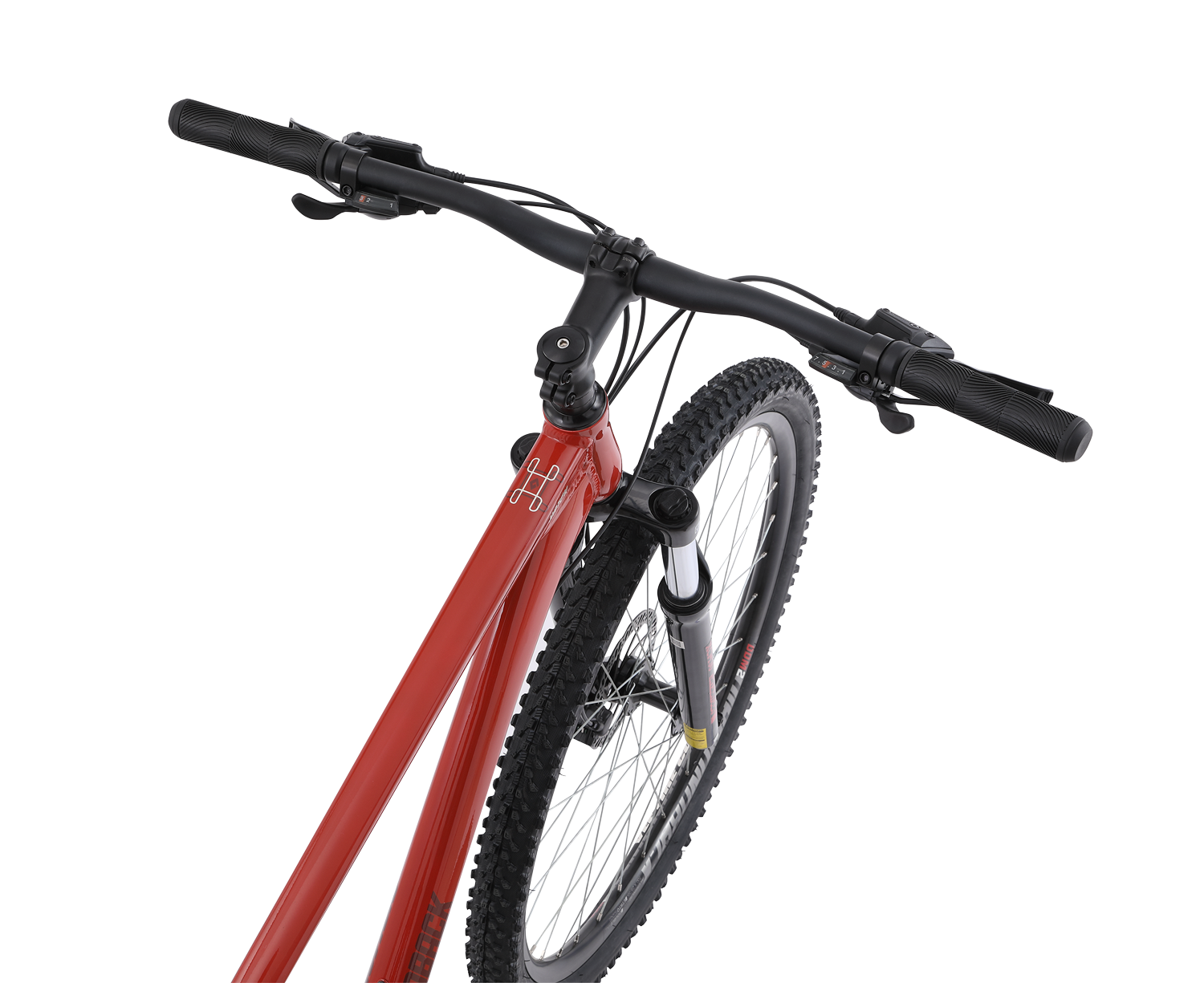

HANDLEBAR
Aluminum 31.8mm Bar, 25mm Rise
FORK
SR Suntour XCM-DS 100mm of Travel with Pre-Load Adjuster, for IS Post Mount Disc
FRONT HUB
Formula DC-20F, 6 Bolt, Disc, Quick Release
GRIPS
MTB Grip
HEADSET
1-1/8" Semi Integrated Cartridge Bearing
REAR HUB
Formula DC-22-7R, 6 Bolt, Disc, Quick Release
STEM
Aluminum MTB 31.8 Bar Bore Stem
CRANKS
Shimano Tourney TY301,42/34/24t
SPOKES
Stainless Steel
SEAT
MTB Saddle
BOTTOM BRACKET
Sealed Cartridge Bearing
RIMS
Aluminum MTB DDM-2 Double Wall, 32 hole, Not Taped
SEATPOST
Aluminum 27.2 Post with 15mm Offset
FRONT DERAILLEUR
Shimano Tourney TY500 Dual Pull
TIRES
Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25", Non Tubeless Tire
EXTRAS
Rack, Fender and Bottle Mounts, Non Tubeless Compatible
REAR DERAILLEUR
Shimano Tourney TX800
BRAKE LEVERS
Tektro M275 Hydraulic
PRODUCT ID
4732
SHIFTER
Shimano M310 3x7 Speed Rapid Fire Shifter
